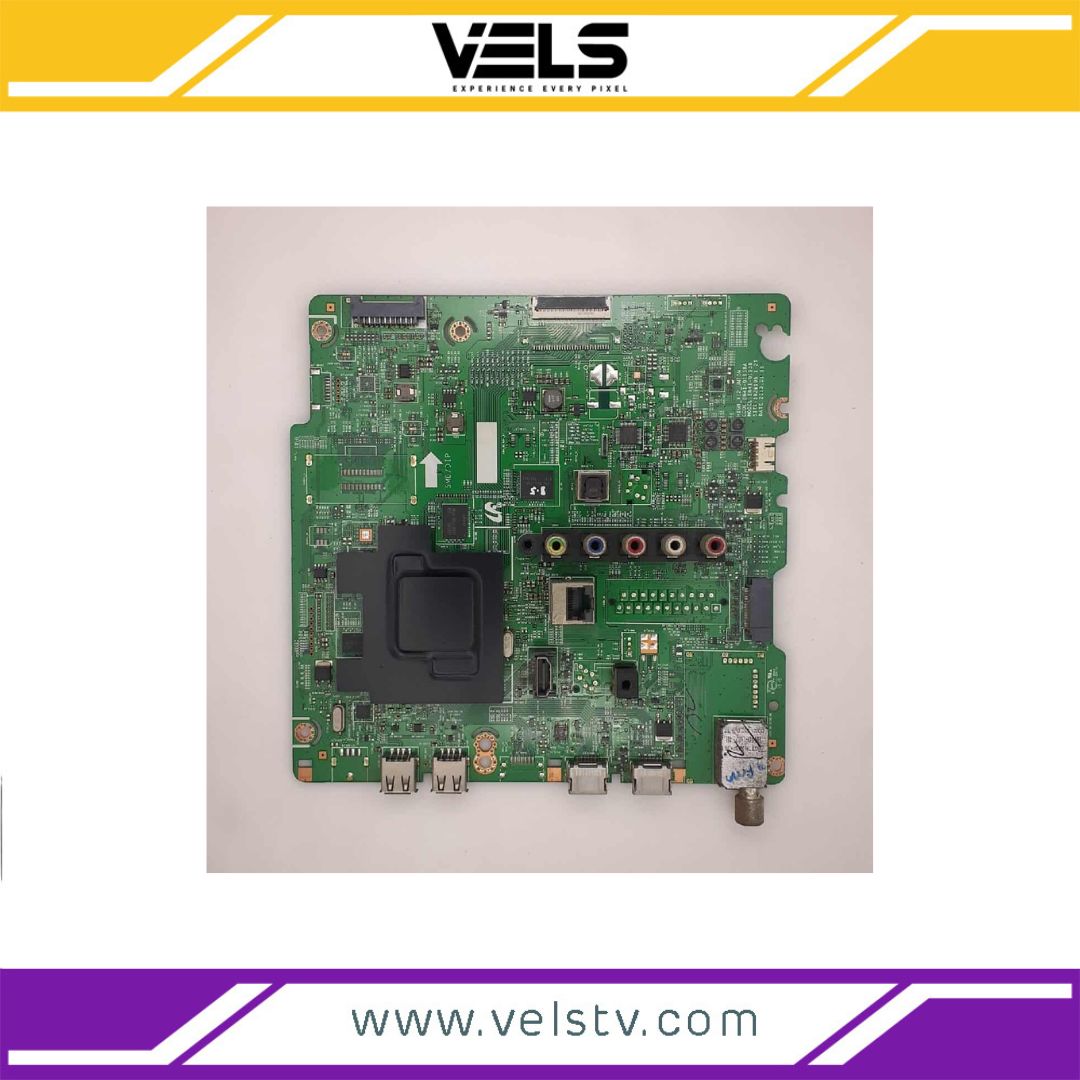

Samsung (us32f5500ar) motherboard
1 in stock
Short Description of Samsung UA32F5500AR Motherboard:
The motherboard for the Samsung UA32F5500AR Smart TV is a key component that controls video processing, audio output, networking (Wi-Fi and Ethernet), HDMI/USB inputs, and Smart Hub functions. It supports Full HD (1080p) resolution and integrates Samsung’s Smart TV software features, including app management and screen mirroring. It typically includes ports for HDMI, USB, AV, antenna, and possibly an Ethernet port.
Model identifiers for this board often start with codes like BN94, BN41, or similar.
Tamilnadu No:1 online electronics product sales.
₹2,500.00 ₹6,000.00
1 in stock
🛠️ Key Features & Specs
-
Model: BN41‑01958B (Main Board for UA32F5500AR series) Kit Bazar+13eBay+13Amazon+13
-
Chipset & SoC: Integrates Samsung’s SoC for LED Smart TVs, handling HDMI, USB, LAN, audio/video processing using built-in Linux OS
-
Memory: Supports DDR SDRAM and has onboard Flash/NAND memory for firmware Manualmachine
-
Input/Output Ports:
-
Up to 3 HDMI ports (including MHL)
-
2 USB ports for media playback/connectivity
-
Component (Y/Pb/Pr) and Composite (AV) inputs
-
Ethernet (LAN) port
-
-
Video Support: Full HD 1080p (1920×1080 @60 Hz) via HDMI & DVI
🔧 Compatibility & Use Cases
-
Compatible with Samsung 32″, 40″, 46″ F5500/5300/6400 series TVs including UA32F5500AR
-
Frequently replaced as a repair part for common issues like:
-
No picture (but backlight works)
-
No sound
-
Power cycling/blinking LED behavior
-
🛠️ Servicing & Troubleshooting
-
Service manuals (e.g., chassis U85A) specify:
-
Factory/Service mode options
-
Board revisions and component layout info Troubleshooting steps: check LVDS clock, audio IC data, component cables, etc.
-
Based on 0 reviews
Be the first to review “Samsung (us32f5500ar) motherboard”
